3 Legged Thing ELLIE L Bracket with Peak Design Base - Grey

3 Legged Thing ELLIE L Bracket with Peak Design Base  - Grey

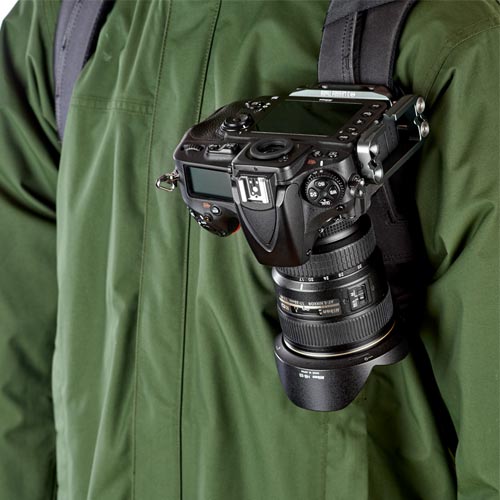

  • Specifically designed to work with Peak Design's Capture Clip system
  • Choice of two screw mount slots for optimal positioning of the camera
  • Opening in vertical aspect can be set in one of four positions for better cable and accessory connections
  • Rear of base plate is sloped to better enable screen access
  • Detachable release plate base can be used in isolation
  • Available in Copper or Grey
Choose your Accessory Colour
AWAITING STOCK
Orders Accepted
Usually available in 5-7 days
Our Price
£60.00

Bundled Items

Total Price £60.00
£60.00
or
MPN Code ELLIE-PD-G
EAN Code 5060244885318
SKU 25121-2367-10923

3 Legged Thing ELLIE L Bracket with Peak Design Base

L-Brackets are primarily used to switch from landscape to portrait on a tripod whilst keeping the focal plane and horizon. Ellie PD is identical to the original Ellie, but has a shoe compatible with Peak Design Capture v3 system. Also compatible with Arca-Swiss, and featuring screen slope and strap connector.

Will it fit my camera?

Compatible with standard Arca-Swiss clamps, Ellie features two different 2 screw mount slots in the base. The bracket length can be adjusted by moving two rigid steel sliding bars which the user fixes into a position with the supplied tool that is suitable for their camera. The rear edge of the base is sloped to better enable screen access. Ellie’s vertical aspect has an opening in one side, allowing users with L-shaped cable pins to connect accessories.

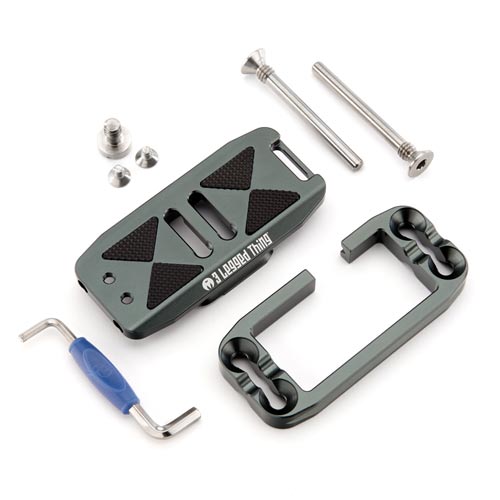

What's in the box?

  • Ellie PD Arca-Swiss and Peak Design Capture-compatible* quick release L-Bracket with 85mm base
  • Stagsden Stainless Steel camera screw
  • Dual-ended mini tool with two hex keys for adjustment of vertical aspect and to secure stainless steel sliding rods into place

Product specifications

  • Base Length - 85 mm / 3.35 "
  • Working Base Length - 95 - 128 mm / 3.74 - 5.04 "
  • Upright - 85mm / 3.35 "
  • Shoe - 38 mm / 1.5 " Arca Swiss and Peak Design Capture v3 Compatible
  • Weight - 94 g / 0.21 lb
