IMAGE SENSOR |
|
|
|
Type |
Approx. 35.9 x 24.0 mm CMOS |
|
Effective Pixels |
Approx. 26.2 megapixels |
|
Total Pixels |
Approx. 27.1 megapixels |
|
Aspect Ratio |
3:2 |
|
Low-Pass Filter |
Built in/Fixed |
|
Sensor Cleaning |
EOS integrated cleaning system |
|
Colour Filter Type |
Primary Colour |
IMAGE PROCESSOR |
|
|
|
Type |
DIGIC 7 |
LENS |
|
|
|
Lens Mount |
EF (excludes EF-S, EF-M lenses) |
|
Focal Length |
Equivalent to 1.0x the focal length of the lens |
|
Image Stabilisation |
Optical Image Stabilizer on compatible lens
Movie: In-camera 5-axis Digital IS available. [29] |
FOCUSING |
|
|
|
Type |
Via optical viewfinder:
TTL secondary image-forming phase detection system with AF dedicated sensor
Via liveview on LCD screen:
Dual Pixel CMOS AF System. Phase detection pixels built onto imaging sensor [20] |
|
AF System/ Points |
Via optical viewfinder:
45 cross-type AF points (45 f/5.6 cross-type AF points, 27 f/8 points (9 cross-type), centre point is f/2.8 and f/5.6 dual cross-type)
Via liveview on LCD screen:
Maximum 63 AF points (Fixed location on 9x7 grid) via camera automatic selection [15] |
|
AF working range |
Via optical viewfinder:
EV -3 - 18 (at 23 °C & ISO 100) with centre AF point & f/2.8 or brighter lenses
Via liveview on LCD screen:
EV -2.5- 18 (at 23 °C & ISO 100) with One-Shot AF |
|
AF Modes |
Via optical viewfinder:
One Shot AF Predictive AI Servo AF (AI Servo II algorithm) AI Focus AF
Via liveview on LCD screen:
One-Shot AF Servo AF |
|
AF Point Selection |
Via optical viewfinder:
Automatic selection: 45 point AF Manual selection: Single point/ Spot AF Manual selection: Zone AF Manual selection: Large Zone AF
AF points can be selected separately for vertical and horizontal shooting
Via LCD screen:
Automatic selection: Face AIAF + Tracking, up to 63 AF points when no subject/ face detected Manual selection via touch screen or freely position 1 AF point/ 1 AF Zone (9 points, 3x3 grid). [20] |
|
Selected AF point display |
Superimposed in viewfinder and indicated on top LCD panel and Quick Control screen |
|
Predictive AF (7) |
Yes |
|
AF Lock |
Locked when shutter button is pressed half way in One Shot AF mode or AF-ON Button is pressed. |
|
AF Assist Beam |
Emitted by an optional dedicated Speedlite or optional Speedlite Transmitter ST-E2 |
|
Manual Focus |
Selected on lens |
|
AF Microadjustment |
C.Fn II-16 +/- 20 steps (wide and tele setting for Zooms) Adjust all lenses by same amount Adjust up to 40 lenses individually Adjustments remembered for lens by serial number |
EXPOSURE CONTROL |
|
|
|
Metering modes |
Via optical viewfinder:
7560-pixel RGB+IR metering sensor Metering with the area divided into 63 segments (9 × 7) (1) Evaluative metering (linked to all AF points) (2) Partial metering (approx. 6.5 % of viewfinder) (3) Spot metering (approx. 3.2 % of viewfinder) (4) Center-weighted average metering
Via liveview on LCD screen:
(1) Evaluative metering (315 zones) (2) Partial metering (approx. 6.3 % of LCD screen) (3) Spot metering (approx. 2.7 % of LCD screen) (4) Center-weighted average metering |
|
Metering Range |
Via optical viewfinder:
EV 1-20 (at 23 °C , ISO 100)
Via liveview on LCD screen:
EV 0-20 (at 23 °C, ISO 100, evaluative metering) |
|
AE Lock |
Auto: In 1-shot AF mode with evaluative metering exposure is locked when focus is achieved. Manual: By AE lock button in creative zone modes. |
|
Exposure Compensation |
+/-5 EV in 1/3 or 1/2 stop increments (can be combined with AEB). |
|
AEB |
2, 3, 5 or 7 Shots +/-3 EV 1/3 or 1/2 stop increments |
|
ISO Sensitivity |
Stills: Auto (100 - 40000), 100 - 40000 (in 1/3-stop or whole stop increments), Manual ISO can be expanded to L: 50, H1: 51200, H2: 102400 [8]
Movie: Auto (100 - 25600), 100 - 25600 (in 1/3-stop or whole stop increments), Auto ISO/ Manual ISO settings can be expanded to H1: 51200. H2: 102400 [8] |
SHUTTER |
|
|
|
Type |
Electronically-controlled focal-plane shutter |
|
Speed |
30-1/4000 sec (1/2 or 1/3 stop increments), Bulb (Total shutter speed range. Available range varies by shooting mode) |
WHITE BALANCE |
|
|
|
Type |
Auto white balance with the imaging sensor |
|
Settings |
AWB (Ambeince priority/White priority), Daylight, Shade, Cloudy, Tungsten, White Fluorescent light, Flash, Custom, Colour Temperature Setting (Approx. 2500 K - 10000 K)
White balance compensation: 1. Blue/Amber +/-9 2. Magenta/ Green +/-9. |
|
Custom White Balance |
Yes, 1 setting can be registered |
|
WB Bracketing |
+/-3 levels in single level increments 2, 3, 5 or 7 Selectable Blue/Amber bias or Magenta/ Green bias. |
VIEWFINDER |
|
|
|
Type |
Pentaprism |
|
Coverage (Vertical/Horizontal) |
Approx. 98% |
|
Magnification |
Approx. 0.71x [4] |
|
Eyepoint |
Approx. 21mm (from eyepiece lens centre) |
|
Dioptre Correction |
-3 to +1 m-1 (dioptre) |
|
Focusing Screen |
Fixed (Transmissive LCD screen) |
|
Mirror |
Quick-return half mirror (Transmission: reflection ratio of 40:60, no mirror cut-off with EF600mm f/4 or shorter) |
|
Viewfinder Information |
AF information: AF points, focus confirmation, AF area selection mode, AF mode
Exposure information: Exposure mode, Shutter speed, aperture value, ISO speed, AE lock, exposure level/compensation, Metering mode, spot metering circle, exposure warning, AEB.
Flash information: Flash ready, high-speed sync, FE lock, flash exposure compensation, red-eye reduction light. Image information: Card information, maximum burst (2 digit display), Highlight tone priority (D+).
Composition information: Grid, Electronic level, Aspect Ratio
Other information: Drive mode, Battery level, Alert symbol, Flicker Detection, Image Quality (RAW/ JPEG) |
|
Depth of field preview |
Yes, with Depth of Field preview button. |
|
Eyepiece shutter |
On strap |

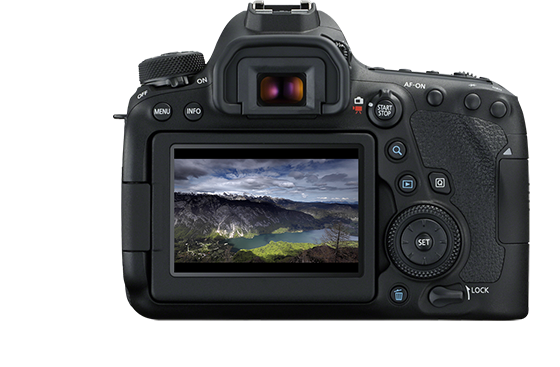

LCD MONITOR |
|
|
|
Type |

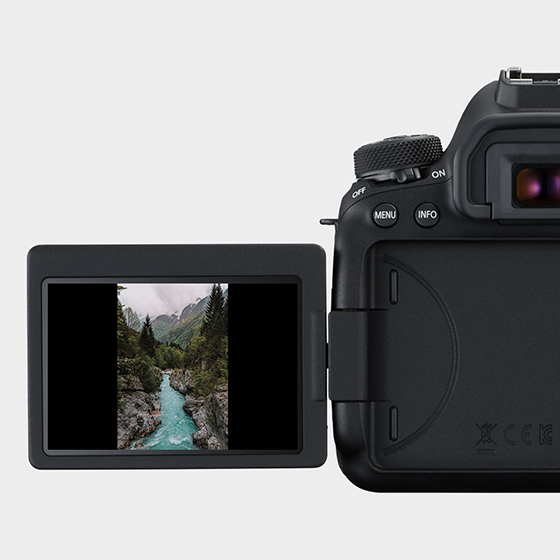

Touch screen Vari angle 7.7cm (3.0") 3:2 Clear View II TFT, approx. 1040K dots |
|
Coverage |
Approx. 100% |
|
Viewing Angle (horizontally/vertically) |
Approx 170° |
|
Coating |
Anti smudge |
|
Brightness Adjustment |
Adjustable to one of seven levels |
|
Display Options |
(1) Quick Control Screen (2) Camera settings (3) Electronic Level |
FLASH |
|
|
|
Modes |
E-TTL II Auto Flash, Metered Manual |
|
X-sync |
1/180sec |
|
Flash Exposure Compensation |
+/- 3EV in 1/2 or 1/3 increments |
|
Flash Exposure Bracketing |
Yes, with compatible External Flash |
|
Flash Exposure Lock |
Yes |
|
Second Curtain Synchronisation |
Yes |
|
HotShoe/ PC terminal |
Yes/ No |
|
External Flash Compatibility |
E-TTL II with EX series Speedlites, wireless multi-flash support (with optional accessory) |
|
External Flash Control |
via camera menu screen |
SHOOTING |
|
|
|
Modes |
Scene Intelligent Auto, Creative Auto, Special Scene (Portrait, Group Photo, Landscape, Sports, Kids, Panning [31], Close-up, Food, Candlelight, Night Portrait, Handheld Night Scene, HDR Backlight Control), Program AE, Shutter-priority AE, Aperture-priority AE, Manual exposure, Bulb exposure, Custom (C1/C2) |
|
Picture Styles |
Auto, Standard, Portrait, Landscape, Fine Detail, Neutral, Faithful, Monochrome, User Defined (x3) |
|
Colour Space |
sRGB and Adobe RGB |
|
Image Processing |
Highlight Tone Priority Auto Lighting Optimizer (4 settings) Long exposure noise reduction High ISO speed noise reduction (4 settings + Multi Shot Noise Reduction) Auto Correction of Lens Peripheral illumination, Distortion correction, Chromatic aberration correction and Diffraction correction Multi-exposure HDR Mode
RAW image processing - during image Playback only Resize to M or S1, S2 |
|
Drive modes |
Single, Continuous L, Continuous H, Self timer (2s + Remote, 10s + Remote, Continuous), Silent single shooting, Silent continous shooting |
|
Continuous Shooting |
Max. Approx. 6.5 fps. (speed maintained for up to 150 images in JPEG, 21 images in RAW) [2] [10] |
|
Intervalometer |
Built-in, number of shots selectable from 1-99 or unlimited. Bulb timer available
Timelapse Movie mode available [29] |
LIVE VIEW MODE |
|
|
|
Type |
Electronic viewfinder with image sensor |
|
Coverage |
Approx. 100% (horizontally and vertically) |
|
Frame Rate |
29.97 fps |
|
Focusing |
Manual Focus (Magnify the image 5x or 10x at any point on screen)
Autofocus: Dual Pixel CMOS AF [20], Tracking sensitivity (-3 to +3) and Movie Servo AF Speed (-7 to +2) |
|
Metering |
Real-time evaluative metering with image sensor Active metering time can be changed |
|
Display Options |
Grid overlay (x3), Histogram, Aspect ratios, Electronic Level |
FILE TYPE |
|
|
|
Still Image Type |
JPEG: Fine, Normal (Exif 2.30 [Exif Print] compliant) / Design rule for Camera File system (2.0),
RAW: RAW, M-RAW, S-RAW (14bit, Canon original RAW 2nd edition), Digital Print Order Format [DPOF] Version 1.1 compliant |
|
RAW+JPEG simultaneous recording |
Yes, any combination of RAW + JPEG, M-RAW + JPEG, S-RAW + JPEG possible. |
|
Image Size |
JPEG 3:2: (L) 6240 x 4160, (M) 4160 x 2768, (S1) 3120 x 2080 (S2) 2400 x 1600 JPEG 4:3: (L) 5536 x 4160, (M) 3680 x 2768, (S1) 2768 x 2080, (S2) 2112 x 1600 JPEG 16:9: (L) 6240 x 3504, (M) 4160 x 2336, (S1) 3120 x 1752, (S2) 2400 x 1344 JPEG 1:1: (L) 4160 x 4160, (M) 2768 x 2768, (S1) 2080 x 2080, (S2) 1600 x 1600
RAW: (RAW) 6240 x 4160, (M-RAW) 4680 x 3120, (S-RAW) 3120 x 2080 |
|
Movie Type |
MP4: Movie: MPEG4 AVC / H.264 (Video: H.264 inter frame, Sound: Linear PCM / AAC, recording level can be manually adjusted by user)
MOV: Motion JPEG (4K 29.97/25.00, time-lapse movies only) ALL-I (FHD 29.97/25.00, time-lapse movies only) |
|
Movie Size |
1920 x 1080 (59.94, 50, 29.97, 25, 23.976 fps) IPB Standard or Light 1280 x 720 (59.94, 50, 29.97, 25 fps) IPB Standard or Light
HDR movie [30]: 1920 x 1080 (59.94, 50, 29.97, 25, 23.976 fps) IPB (Standard, Light)
Time-lapse movie: 3840 x 2160 ( 29.97, 25 fps) Motion JPEG 1920 x 1080 ( 29.97, 25 fps) ALL-I |
|
Movie Length |
Max duration 29min 59sec, Max file size 4GB (If file size exceeds 4GB a new file will be created automatically except in Timelapse Movie mode) |
|
Folders |
New folders can be manually created and selected |
|
File Numbering |
(1) Consecutive numbering (2) Auto reset (3) Manual reset |
OTHER FEATURES |
|
|
|
Custom Functions |
28 Custom Functions |
|
Metadata Tag |
User copyright information (can be set in camera) Image rating (0-5 stars)
GPS coordinates: Latitude, Longitude, Elevation, Coordinated Universal Time (UTC), Satellite signal acquisition status |
|
LCD Panel / Illumination |
Yes / Yes |
|
Water/ Dust resistance |
Yes |
|
Sound Memo |
No |
|
Intelligent Orientation Sensor |
Yes |
|
Playback zoom |
1.5x - 10x |
|
Display Formats |
(1) Single image with information (2 levels) (2) Single image (3) 4 image index (4) 9 image index (5) 36 image index (6) 100 image index (7) Jump Display (8) Movie/edit |
|
Slide Show |
Playback time: 1/2/3/5/10/20 seconds Repeat: On/Off Background music: On/Off Transition effect: Off, Slide in 1, Slide in 2, Fade 1, Fade 2, Fade 3 |
|
Histogram |
Brightness: Yes RGB: Yes |
|
Highlight Alert |
Yes |
|
Image Erase/Protection |
Erase: Single image, All images in folder, Checkmarked images, unprotected images Protection: Erase protection of one image at a time |
|
Menu Categories |
(1) Shooting menu (x5) (2) Playback menu (x3) (3) Setup menu (x5) (4) Custom Functions menu (5) My Menu |
|
Menu Languages |
25 Languages English, German, French, Dutch, Danish, Portuguese, Finnish, Italian, Norwegian, Swedish, Spanish, Greek, Russian, Polish, Czech, Hungarian, Romanian, Ukrainian, Turkish, Arabic, Thai, Simplified Chinese, Traditional Chinese, Korean and Japanese |
|
GPS |
Compatible satellites: GPS satellites (USA), GLONASS satellites (Russia), Quasi-Zenith Satellite System (QZSS) MICHIBIKI (Japan) [32]
Position update interval: 1 sec., 5 sec., 10 sec., 15 sec., 30 sec., 1 min., 2 min., 5 min.
Time setting: GPS time data set to camera
Log data: One file per day, NMEA format |
|
Firmware Update |
Update possible by the user. |
INTERFACE |
|
|
|
Computer |
Hi-Speed USB (USB 2.0) |
|
Wi-Fi |
Wi-Fi (2.4GHz) Channels: IEEE802.11b, IEEE802.11g, IEEE802.11n [17] |
|
Wi-Fi Security |
Camera Access Point: WPA2-PSK with AES encryption or open Infrastructure: Shared key, with WEP encryption, WPA-PSK/WPA2-PSK with TKIP/AES encryption or open |
|
Bluetooth |
Bluetooth Specification Version 4.1 compliant (Bluetooth low energy technology) [25] |
|
NFC |
NFC Forum Type 3/4 Tag compliant (dynamic) |
|
Other |

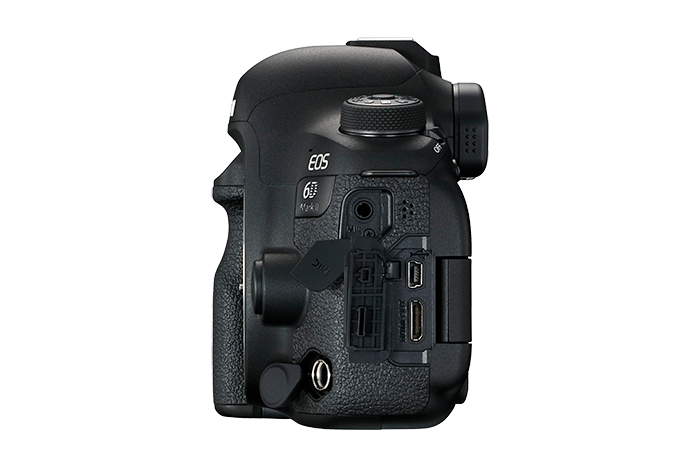

HDMI output (Type-C), External microphone (3.5 mm Stereo mini jack) |
DIRECT PRINT |
|
|
|
Canon Printers |
Canon Compact Photo Printers and PIXMA Printers supporting PictBridge |
|
PictBridge |
Yes (PictBridge via WLAN compatible) |
STORAGE |
|
|
|
Type |
SD, SDHC or SDXC (UHS-I) card |
SUPPORTED OPERATING SYSTEM |
|
|
|
PC & Macintosh |
Windows 10 / 8.1 / 8 / 7 (With Microsoft .NET Framework 4.5 is installed) [24]
Mac OS X 10.9 / 10.10 / 10.11 / 10.12 |
SOFTWARE |
|
|
|
Browsing & Printing |
|
|
Image Processing |
Digital Photo Professional 4 |
|
Other |
EOS Utility EOS Lens Registration Tool EOS Web Service Registration Tool EOS Sample Music Picture Style Editor Map Utility |
POWER SOURCE |
|
|
|
Batteries |
Rechargeable Li-ion Battery LP-E6N (supplied) |
|
Battery life |
Approx. 1200 shots (at 23°C, AE 50%, FE 50%) [5] Approx. 1100 shots (at 0°C, AE 50%, FE 50%) |
|
Battery Indicator |
6 levels + percentage |
|
Power saving |
Power turns off after 1, 2, 4, 8 or 15 mins. |
|
Power Supply & Battery Chargers |
AC Adapter AC-E6(N), DC coupler: DR-E6, Battery charger LC-E6E, Car Battery charger CBC-E6 |
PHYSICAL SPECIFICATIONS |
|
|
|
Body Materials |
Chassis: Aluminum alloy and polycarbonate resin with glass fiber
Body: Polycarbonate resin with special conductive fiber & Polycarbonate resin with glass fiber on some parts |
|
Operating Environment |
0 – 40 °C, 85% or less humidity |
|
Dimensions (WxHxD) |
144.0 x 110.5 x 74.8 mm |
|
Weight (body only) |
Approx. 765 g (CIPA testing standard, including battery and memory card) |
ACCESSORIES |
|
|
|
Viewfinder |
Eyecup Eb, E-series Dioptric Adjustment Lens, Eyepiece Extender EP-EX15II, Angle Finder C |
|
Case |
Protecting Cloth PC-E1 |
|
Wireless File Transmitter |
Built in Wi-Fi transmission |
|
Lenses |
All EF lenses (excludes EF-S lenses & EF-M lenses) |
|
Flash |
Canon Speedlites (90EX, 220EX, 270EX, 270EX II, 320EX, 420EX, 430EX, 430EX II, 430EX III-RT, 550EX, 580EX, 580EX II, 600EX, 600EX-RT, Macro-Ring-Lite MR-14EX II, Macro Twin Lite MT-24EX, Speedlite Transmitter ST-E2, Speedlite Transmitter ST-E3-RT) |
|
Battery Grip |
Battery Grip BG-E21 |
|
Remote Controller/ Switch |
Remote Switch RS-80N3 Timer Remote Controller TC-80N3 Remote Controller RC-6 Wireless Remote Control BR-E1 (via Bluetooth) |
|
Other |
Hand Strap E2 Interface Cable IFC-400PCU Directional Stereo Microphone DM-E1 |
