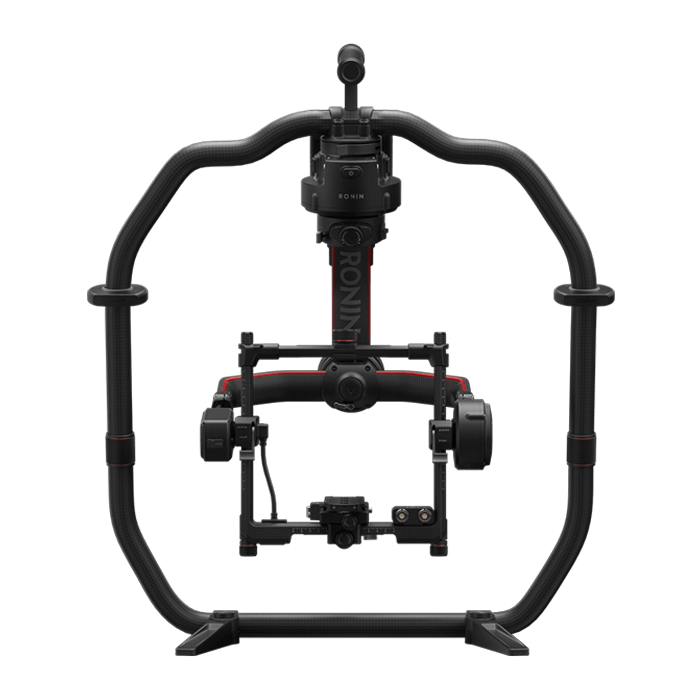

DJI Ronin 2 Professional Combo Kit
LEGACY: A RONIN 2 SHORT FILM
Watch how Ronin 2 excels on a film set, allowing filmmakers to capture and transition between scenes effortlessly.
Ronin 2 exists to let filmmakers capture the scene they see in their mind. Upgraded high torque motors allow it to support a wider range of cameras, resist high winds and G-forces caused when mounted to a car and keep it moving smoothly in flight.
Whether it’s a simple DSLR or a professional camera with cinema grade glass with all the accessories mounted, Ronin 2 will stabilize the build.
ARRI Alexa Mini
Black Magic Ursa Mini
Higher Torque, More Power, Same Precision
With up to eight times more powerful motors than previous iterations, Ronin 2 can withstand sustained speeds of over 75mph with camera builds as heavy as 30lbs. We’ve increased power without sacrificing control. With encoded motors and extreme precision, the same 0.02° of accuracy remains.
With the new Ronin power hub, essential accessories such as DJI Focus and wireless video transmission systems could gain power and communicate data with Ronin 2.
The new Remote Controller provides dedicated controls for joystick input speed and start/stop recording. Besides this, Ronin 2 is also compatible with third party remote controllers such as hand wheels and traditional remotes through the onboard D-Bus port.
The simplicity of Ronin has been amplified with Ronin 2, making setup and use easier than ever. Everything, from mounting cameras to balancing and tuning, powering accessories and transportation has been tweaked and refined for ease and speed.
Every element of Ronin 2 has been designed to maximize reliability, from materials to the splash-proof enclosed motor design, cable management, and redundancy. All of this creates a system that shines in the most demanding of shooting environments.
A newly designed detachable Grip allows Ronin 2 to stand up on its own and is easily separated when the lower part of the hand grip is not needed. Ronin 2 is also highly compatible with cable cams, drones, cranes, Steadicams and more.
|Built-In Functions||Operation Modes; Underslung Mode, Upright Mode, Briefcase|
|Handheld, Car Mount, Aerial, Tripod, & Steadicam Mode|
|Built-in, independent IMU module|
|DJI Advanced 32-Bit ARM Processor|
|DJI Specialized Gimbal Drive Motors with Encoders|
|Dual Battery System|
|D-Bus Receiver Supported|
|2.4 GHz/5.8 GHz Receiver|
|Built-in Touch Panel|
|USB Type-C Connection|
|Power and Video Signal through Slip Ring|
|Mechanical and Electrical Characteristics:|
|Working Current||Static current: 300 mA (@22.8 V)|
|Dynamic current: 500 mA (@22.8 V)|
|Locked motor current: Max 15 A (@22.8 V)|
|Run Time||8 hours|
|2.5 hours (when powering gimbal, camera and accessories at the same time)|
|Operating Temperature||-4 degF - 122degF (-20 degC - 50 degC)|
|Weight||Including handle bar: 12 lb (5.5 kg)|
|Excluding handle bar: 9 lb (4.2 kg)|
|Gimbal Dimensions||Excluding handle bar: 350 mm (W) x 416 mm (D) x 530|
|Including handle bar: 630 mm (W) x 416 mm (D) x 720 mm (H)|
|Camera Tray Dimensions||Maximum depth from the center of gravity on|
|camera base plate: 245 mm|
|Maximum height measured from top of the camera base plate: 165 mm|
|Maximum width: 180 mm|
|Accessory Power Connections||14.4 V x 4 Camera Cage (Combined 8 A),|
|12.6 V x 2 Pan Motor (Combined 4 A), 12.6 V x1 P-Tap (8 A)|
|GCU Input Power||Intelligent Battery: 4280 mAh-22.8 V|
|Connections||2.4 GHz/5.8 GHz Remote Control, Bluetooth 4.0, USB Type-C|
|PC Assistant Software Requirements||Windows 7 or above; Mac OS X 10.11 or|
|Mobile Assistant Software Requirements||iOS 9 or above; Android 4.4 or above|
|Load Weight (Reference Value)||30 lbs (13.6 kg)|
|Angular Vibration Range||plus/ minus 0.02 deg|
|Maximum Controlled Rotation Speed||Pan axis: 400 deg/s|
|Tilt axis: 360 deg/s|
|Roll axis: 360 deg/s|
|Mechanical Endpoint Range||Pan axis control: 360 deg continuous rotation|
|Tilt axis control: plus/ minus 135 deg|
|Roll axis control: plus/ minus 220 deg|
|Controlled Rotation Range||Pan axis control: 360 deg continuous rotation|
|Tilt axis control: +45 deg to -135 deg|
|Roll axis control: plus/ minus 45 deg|
- 1x Ronin 2 Gimbal
- 1x Carrying Case
- 1x Ronin 2 Power Hub
- 1x Camera Mounting Plate
- 1x Camera Upper Mounting Plate
- 1x Remote Controller
- 1x Battery Compartment
- 2x Intelligent Battery (TB50)
- 1x Battery Charger
- 1x Power Cable
- 1x Charging Hub
- 1x Grip
- 1x Accessories Package (Screws & Hex Keys)
- 1x Cables Package (Red Power Cable, Arri Power Cable, 2-pin Power Cable, DC Power Cable, 6-pin-to-P-tap Adapter, USB Type-C Data Cable, Control Cable for Red, Control Cable for Arri, Ronin 2 Power Cable, S-Bus Receiver Cable, 1 each.)
- 1x Manual
- 1x Monitor Mounting Bracket
- 1x 15mm Rod Mount
- 2x 15mm Extension Rod
- 1x Ronin 2 Universal Mount
