Kowa TSN-DA20 Adapter

Kowa TSN-DA20 Adapter

Digiscoping adapter for TSN-550 series as well as for eyepieces from the TSN-600/660/82SV series and Highlander

AWAITING STOCK
Orders Accepted
Usually available in 5-7 days
Our Price
£120.00

Bundled Items

Total Price £120.00
£120.00
or
MPN Code TSN-DA20
EAN Code 4987646102298
SKU 20330

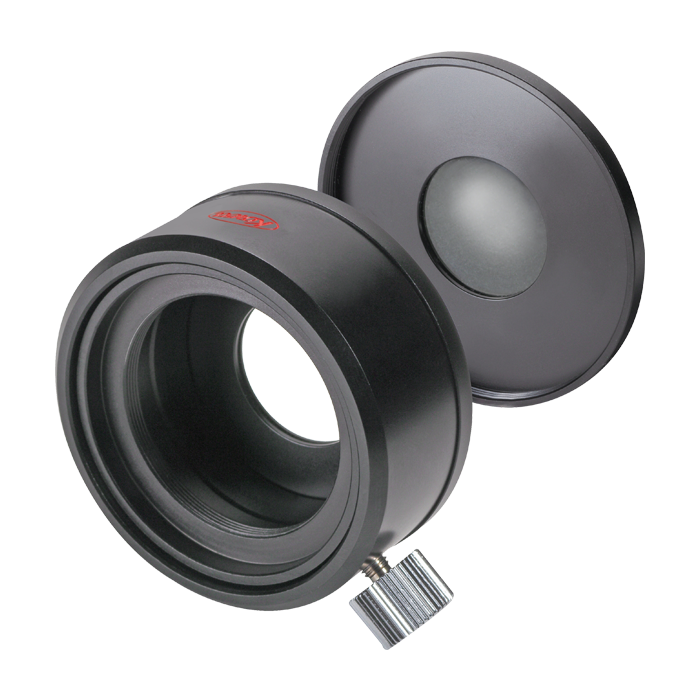

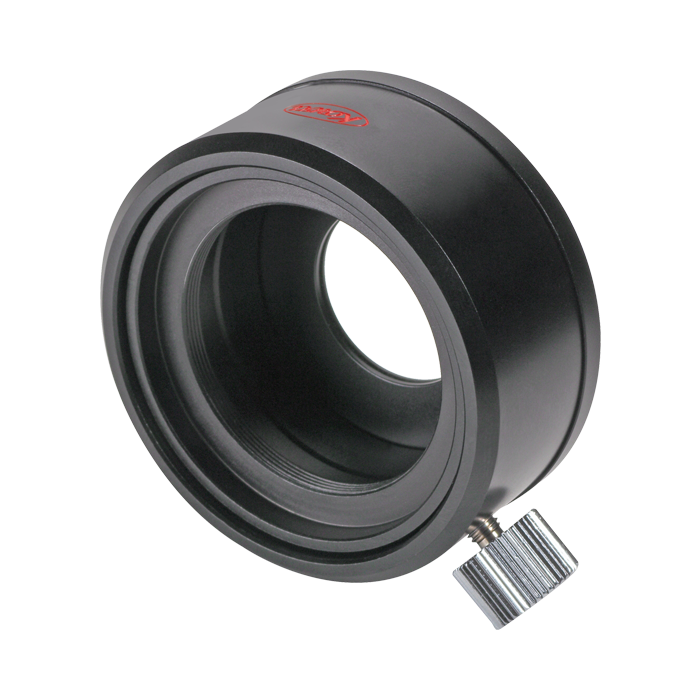

Kowa TSN-DA20 Adapter

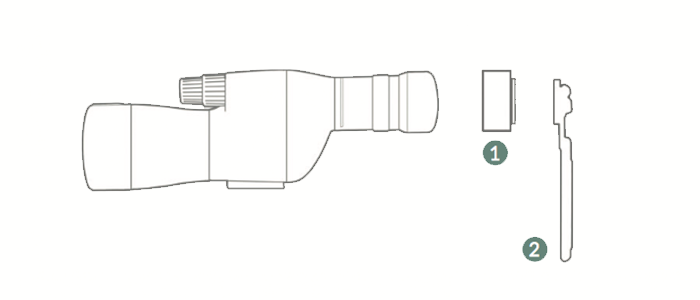

Mobile Phone attachment:

Combine the high quality camera and HD/4K video func ons of your smart phone with the power and legendary quality of a Kowa TSN-550 PROMINAR spotting scope to create an ultra compact, high quality super telephoto lens. With the Kowa smartphone adapter, you can quickly and easily connect your phone to the Kowa TSN-550 PROMINAR spotting scope to create stunning highly magnified images of the world around you. Each adapter is designed to suit a specific phone model perfectly for easy set-up and the TSN-AR66Z adapter ring pushes firmly over the eyepiece to connect the adapter to the scope.

  •





    1 - TSN-DA20 Adapter

    2 - TSN-IP4/4S/5/5S/SE/6/6S/7 TSN-GA4S/GA5S smart phone adapter

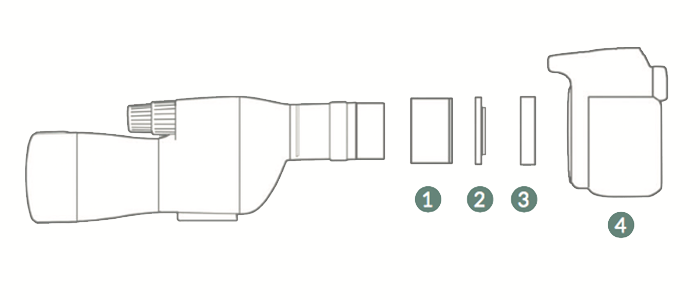

DSLR and Compact System attachment:

The Kowa TSN-DA20 securely screws on to the TSN-550 eyepiece and in combination with the TSN-AR42GT filter ring - a standard T2 ring can be used to bridge the connection to the adapter and camera body. The TSN-AR42GT incorporates a glass layer to protect your camera sensor from dirt and dust entering whilst using the adapter. Connection is easy and allows a quick switch between observation or photography. The full zoom range of the eyepiece is available creating incredible telephoto possibilities for such a compact system.

  •

    1 - TSN-DA20 Adapter

    2 - TSN-AR42GT Filter ring

    3 - Applicable T2 ring

    4 - Applicable Camera Body

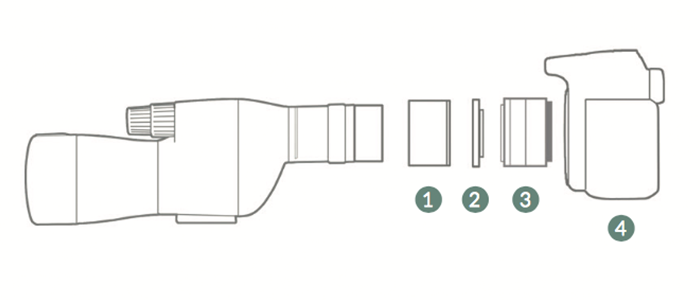

Alternative option using camera body and lens up to 50mm -

The Kowa TSN-DA20 can be combined with a Kowa TSN-AR Filter ring to connect a camera body with a xed lens (up to 50mm). The DA20 accepts our range of adapter rings AR28/30/30.5/37/43/46/52/55/58/62/72mm. Simply choose the ring that fits the filter thread of your lens. All camera functions remain including camera lens auto-focus and focus peaking.

  •

    1 - TSN-DA20 Adapter

    2 - TSN-AR lter ring as required

     3 - Applicable Lens

    4 - Applicable Camera Body

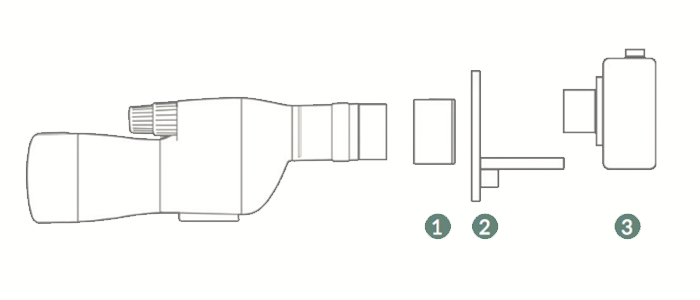

Alternative option using a compact camera -

The TSN-DA4 is a versatile adapter that will accommodate the majority of digital compact cameras with a 3-5x optical zoom lens via the tripod thread. Horizontal and height adjustments can be made to perfectly align your camera with the eyepiece, as well as a built-in fully adjustable mechanical shutter release cable. The DA4 features a swivel design which means you can easily rotate your digital camera away from the eyepiece to use the scope for normal viewing, then rotate back into place to take a photograph or record video. Secure connection to the scope eyepiece is achieved by attaching the TSN-DA4 on to the TSN-DA20 adapter.

  •

    1 - TSN-DA20 Adapter

    2 - TSN-DA4 adapter

    3 - Compact camera



Find related accessories to the Kowa TSN-DA20 Adapter here. The discount highlighted will be received if you add the items as part of a bundle. Keep an eye out for exclusive deals on photographic equipment and accessories here!
Kowa TSN-DA4 Universal Camera Adapter
£349.00 inc 20.00% VAT
Normal Price £349.00
Awaiting Stock
Kowa TSN AR Adapter Rings
£32.00 inc 20.00% VAT
Normal Price £36.00
Awaiting Stock

Kowa TSN-DA20 Adapter reviews verified by reevoo
Verified reviews of Kowa TSN-DA20 Adapter

out of 10

1 review

Value for money
Overall rating
Scores 10.0 out of 10 based on 1 review
Sort by:
out of 10

Shailesh

Wembley GB
+
It fits well on my Sony a6000 which is e-mount.

Easy to use.
Reviewer left no comment
Confirmed purchase: 21 March 2018
Published on: 31 March 2018
