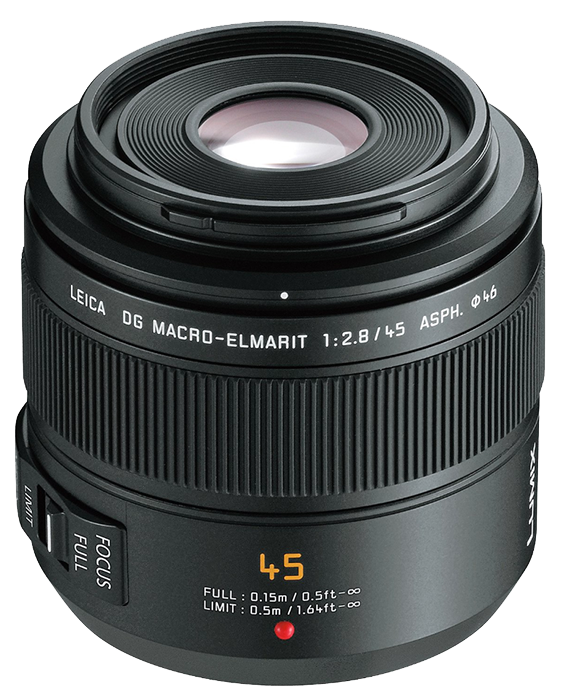

Panasonic 45mm f2.8 ASPH Leica DG Macro-Elmarit Lens
High Image Quality and High Mobility Lens Based on the Micro Four Thirds System Standard
The LEICA DG MACRO-ELMARIT 45mm / F2.8 ASPH. / MEGA O.I.S. boasts a superb image quality with minimum distortion, chromatic aberrations as well as ghosts and flares that passes a stringent Leica standard to goes beyond their expectations. This lens system uses both an aspherical lens and an ED lens in its 14 lenses in 10 groups to realize outstanding compactness, taking advantage of the Micro Four Thirds standard to achieve dramatic downsizing while minimizing distortion and chromatic aberration.
Panasonic's MEGA O.I.S. (Optical Image Stabilizer) suppresses the blurring that is commonly caused by hand-shake, making it easy to shoot clear shots for sharply focused macro shot or in dimly lit places without using a tripod.

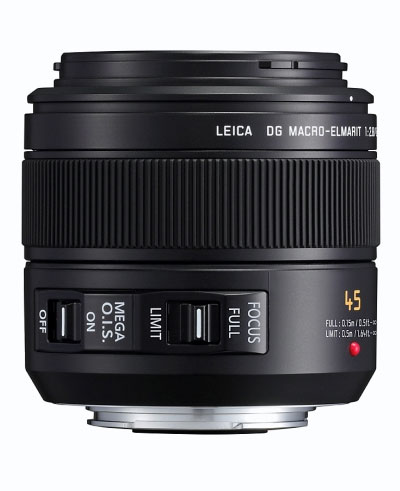

It incorporates an inner focus direct-drive linear motor with 3 groups of floating structure for focusing, which enables excellent resolution and contrast without changing its overall length from full life-size magnification to infinity. The inclusion of stepping motor makes the focusing action smooth and silent for use in both photo and movie recording. The closest focusing distance can be instantly changed to 15 cm or 50 cm (0.5 ft to 1.64 ft) with the switch on the lens barrel according to the shooting opportunity.
When mounted on the LUMIX G Micro System Camera, this lens allows use of the advanced contrast AF system, which includes a Face Recognition function, for more convenient, more enjoyable shooting.
Seven blades give the aperture a rounded shape that produces an attractively smooth effect in out-of-focus areas when shooting at larger aperture settings. The LEICA DG MACRO-ELMARIT 45mm / F2.8 ASPH. / MEGA O.I.S. lens also features a highly reliable metal mount, and uses multi-coated lens elements that minimize ghosts and flare to further enhance its optical performance.
Lens Construction 14 elements in 10 groups (1 Aspherical lens, 1 ED lens)
Mount Micro Four Thirds mount
Optical Image Stabilizer YES
Focal Length f=45mm (35mm camera equivalent 90mm)
Aperture Type 7 diaphragm blades / Circular aperture diaphragm
Aperture Range F2.8
Minimum Aperture F22
Closest Focusing Distance FULL: 0.15m / 0.5ft, LIMIT: 0.5m / 1.64ft
Maximum magnification Approx. 1.0x / 2.0x (35mm camera equivalent)
Diagonal Angle of View 27°
Filter Size φ46mm / 1.81 in
Max.Diameter φ63mm / 2.48 in
Overall Length Approx. 62.5mm / 2.46 in (from the tip of the lens to the base side of the lens mount)
Weight [g] 225.0
Weight [oz] 7.94
Standard Accessories Lens Cap, Lens Hood, Lens Rear Cap, Lens Storage Bag
