Pentax 24-70mm F2.8 ED SDM WR HD Lens

Pentax 24-70mm F2.8 ED SDM WR HD Lens

A high-performance, interchangeable standard zoom lens for use with PENTAX K-mount digital SLR cameras, providing exceptional imaging power and a large F2.8 maximum aperture

When mounted on a 35mm-format full-frame digital SLR camera body (currently under development), this large-aperture standard zoom lens covers a focal-length range from 24mm ultra-wide-angle to 70mm standard,  and provides a maximum aperture of F2.8 over the entire zoom range.

•

  Exceptional imaging power

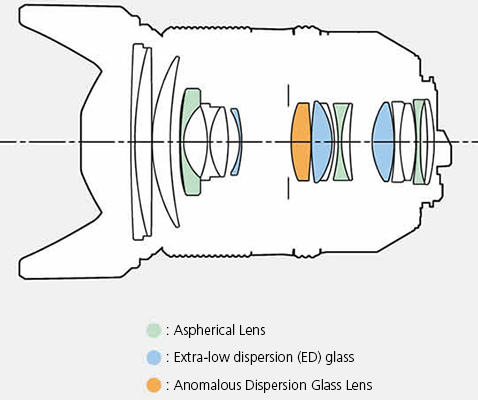

  Consisting of 17 elements in 12 groups, the newly designed optics feature three ED (Extra-low Dispersion) optical elements, one anomalous-dispersion-glass aspherical optical element and three aspherical optical elements to accommodate super-high-resolution image sensors. By assuring sufficient light levels even at the edges of the image field and compensating various aberrations to a minimum, it provides a high MTF (Modulation Transfer Function) and delivers well-illustrated, fine-detailed images that are rich in contrast and resolution across the entire image field. When mounted on a current PENTAX K-series camera body, it uses only the central area of the image circle so that it delivers high-resolution images with uniform image description over the entire image field.
•

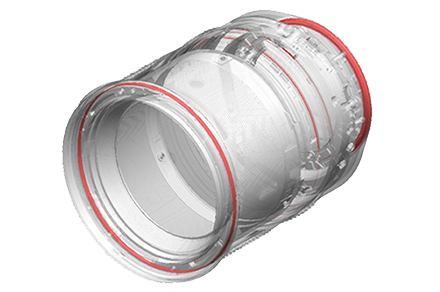

  Weather-resistant construction

  This lens features a dependable weather-resistant construction with special seals to effectively prevent the intrusion of water into the lens interior. By pairing it with a weather-resistant PENTAX digital SLR camera body, it assures a durable, dependable digital imaging system that performs superbly in demanding shooting settings ? even in rain or mist, or in locations prone to water splashing or spray.

• Built-in SDM (Supersonic Direct-drive Motor)

  Thanks to the incorporation of a new-generation SDM (Supersonic Direct-drive Motor), this zoom lens assures quiet, high-speed autofocus operation, allowing the photographer to react swiftly to all types of subjects.

• HD Coating to improve image description

  The lens is treated with high-grade, multi-layer HD Coating.* Compared with conventional multi-layer coatings, this PENTAX-original coating assures higher light transmittance and less reflection to deliver bright, high-contrast images free of flare and ghost images, even under demanding lighting conditions such as backlight. *2：HD stands for High Definition.

• Quick-Shift Focus system

  The lens comes equipped with the PENTAX-developed Quick-Shift Focus system, which allows the user to instantly switch to manual-focus operation after the subject is captured in focus by the camera’s AF system.

• Other features

  Rounded diaphragm to produce a smooth, beautiful bokeh (defocus) effect, while minimizing the streaking effect of point light sources.
  Zoom lock lever to prevent the accidental extension of the lens barrel when pointed downwards.

 Specifications

MTF Charts

•

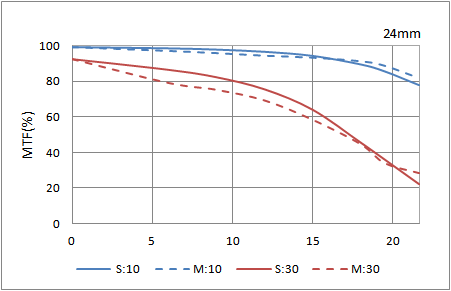

  MTF Chart Wide Angle.
•

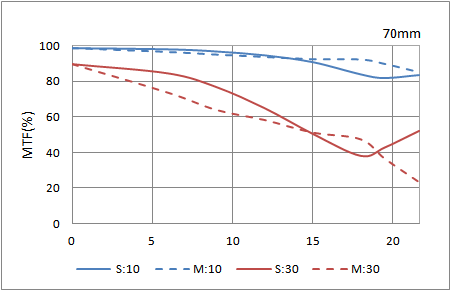

  MTF Chart Telephoto.

•  Optics

  Focal Length: 24 - 70mm
  Aperture Maximum: f/2.8
  Minimum: f/22
  Camera Mount Type: Pentax K
  Format Compatibility: 35mm Film / Full-Frame Digital Sensor APS-C
  Angle of View: 84° - 34.5°
  Minimum Focus Distance: 1.25' (38 cm)
  Magnification: 0.2x
  Elements/Groups: 17/12
  Diaphragm Blades: 9, Rounded
•  Other

  Features:
  Autofocus: Yes
  Physical:
  Filter Thread: Front: 82 mm
  Dimensions (DxL): Approx. 3.48 x 4.31" (88.5 x 109.5 mm)
  Weight: 1.73 lb (787 g)
