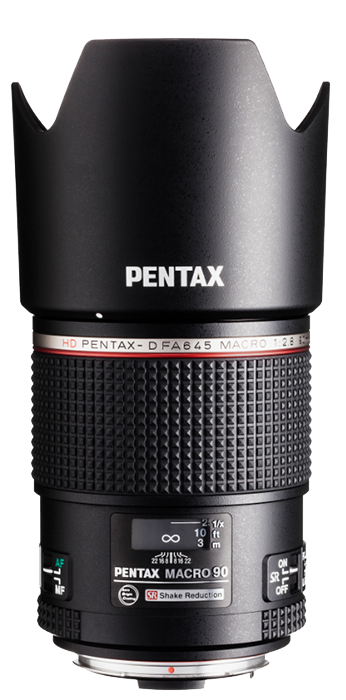

Pentax 90mm f2.8 AW SR W/C HD DFA 645 Macro Lens
Thanks to the incorporation of PENTAX-original HD Coating — a newly developed, high-grade multi-layer lens coating — and the PENTAX-innovated, lens-installed SR (Shake Reduction) mechanism, this medium-telephoto lens assures bright, velvety image description that is ideal for portrait photography.
Velvety image description ideal for portraiture
When mounted on a PENTAX 645D medium-format digital SLR camera body, this medium-telephoto lens offers a focal length of approximately 71mm (or approximately 65mm when mounted on a PENTAX 645 film-format camera body) in the 35mm format. By incorporating two ED (extra-low dispersion) elements and one glass-molded aspherical element in its optics, it assures high-resolution image reproduction over the entire image field, while effectively minimizing chromatic aberration, a problem commonly associated with fast lenses.
At larger apertures, this lens defines the subject with fine, delicate lines and soft, velvety edges. Coupled with a beautiful bokeh (out-of-focus rendition) effect created by a very shallow depth of field, it is an ideal lens for portrait photography. At smaller apertures, it produces sharp, solid images to make it useful for applications other than portraiture, such as scenic and still-life photography. It also offers macro photography at a maximum magnification of 0.5 times. In close-up applications, its floating mechanism effectively compensates for the curvature of the field to assure sharp, well-defined images.
New HD Coating and Aero Bright Coating.
This lens is treated with a newly developed, high-grade multi-layer lens coating called HD Coating.* Compared with conventional multi-layer coatings, this new coating offers higher light transmittance with reduced reflection, to deliver sharp, clear images free of flare and ghost images, even under demanding lighting conditions such as backlight. By coupling this coating with the PENTAX-exclusive, high-grade Aero Bright Coating,** this lens optimizes light transmittance while minimizing refraction.
* HD stands for High Definition, and signifies the lens’s capacity to reproduce images that excel in transparency, definition, resolution and rendition.
** A PENTAX-original lens coating process developed through the use of advanced nanotechnology. Using a silica aerogel with a uniform porous structure as the base material, this coating produces clear, high-quality images by assuring an outstanding anti-reflection performance over a broad wavelength range.
PENTAX-original, lens-installed SR mechanism
This is the first lens to incorporate the PENTAX-innovated SR (Shake Reduction) mechanism within the lens barrel. Since this mechanism effectively compensates for camera shake up to approximately 3.5 shutter steps, the user is assured of sharp, blur-free images even under conditions prone to camera shake, such as when handholding the camera at poorly lit locations without flash illumination, or when photographing sunset scenes.
Dustproof, weather-resistant construction
As a new model of the AW (All Weather) series, this lens features a dependable dustproof and weather-resistant construction with 11 special seals to effectively prevent the intrusion of dust and water into the lens interior. By mounting this lens to a PENTAX 645D camera body, the user is assured of a durable, reliable imaging system that performs superbly in demanding outdoor settings — even in rain or mist, or at locations prone to water splashes or spray.
New exterior design signifying HD series
While inheriting traditional design features of PENTAX medium-format lenses, such as a twill-patterned focus ring and metal rings, this lens features a red almite ring at the front end of the focus ring to signify the new HD PENTAX lens series and enhance its exclusive appearance.
Quick-Shift Focus system for instant switching to manual-focus operation after the subject is captured in focus by the camera’s AF systemSP (Super Protect) coating applied to the front surface of the lens to effectively repel water and grease and easily wipe off dust and stainRounded diaphragm to produce a smooth, beautiful bokeh (out-of-focus rendition), while minimizing the streaking effect of point light sources
|Equivalent to 35mm format
||Equ. to 71mm in 35mm format
|Number of Diaphragm Blades
|Angle of View
||34° (with PENTAX D-SLR camera body)
||11 elements in 9 groups
|Smallest object distance/magnification
|Dimensions (Length x Diameter)
111.6mm x 90.5
