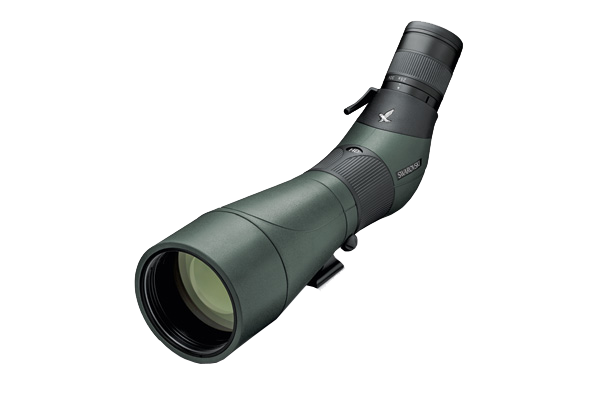

Swarovski ATS STS 80 HD Spotting Scopes (Body Only)
The ATS/STS 80 (HD) observation telescopes set the highest standards among telescopes in this category. Even with the easy-to-handle fully rubberized armouring, the ATA/STS 80 (HD) are by far the lightest of the larger observation telescopes. Thanks to a recalculated optical system, they offer a precise observation of detail, optimum edge-to-edge images and almost 100 per cent colour fidelity with an extremely wide field of view, thereby achieving a revolutionary image quality.
Integrated objective lens protection. Stops glare and diffused light as well as protecting against rain and snow. Lock mechanism in ultimate extended position: cannot move on its own and silent to handle
Very light weight of only 1.100 g (38.8 oz), despite the fully rubberised armouring: easy to handle even in cold weather
Extremely light, but very sturdy light alloy housing
Tilting tripod ring (ATS 65/ATS 65 HD models only) for setting to preferred observation position. Standardized foot fits Swarovski tripods without additional plate or all tripods with 1/4" and 3/8" threads
Internal focusing for dustproof and watertight qualities. No fogging thanks to nitrogen filling, protected against infestation of fungus
Easy-grip ergonomically-positioned focusing ring with larger grooves for quick and precise focusin
Removable aid for quick target pick-up
Cover glass to protect against dust, dirt and water, when eyepiece is not connected
E.g. zoom eyepiece with 20-60 x magnification: full field of view even for eyeglass-wearers due to individually adjustable twist-in eye cups Bayonet connector for simple and rapid changeover of eyepiece and camera adapters
Functional temperature: -20 to +55° C (-4 to +131° F)
Storage temperature: -30 to + 70° C (-22 to +158° F)
Submersion tightness: 4 m (13 ft) (filled with nitrogen)
Objective lens focal length: 460 mm (18.11 in)
| |
ATS 80
ATS 80 HD |
STS 80
STS 80 HD |
Eyepiece
20xSW |
Eyepiece
30xSW |
Eyepiece
45xSW |
Eyepiece
20-60xS |
| Magnification |
- |
- |
20x |
30x |
45x |
20-60x |
| Objective lens diameter (mm) |
80 |
80 |
- |
- |
- |
- |
| Objective lens diameter (in) |
3.15 |
3.15 |
- |
- |
- |
- |
| Exit pupil, diameter (mm) |
- |
- |
4.0 |
2.7 |
1.8 |
4-1.3 |
| Exit pupil, diameter (in) |
- |
- |
0.16 |
0.11 |
0.07 |
0.16-0.05 |
| Eye relief (mm) |
- |
- |
17 |
20 |
18 |
17 |
| Eye relief (in) |
- |
- |
0.67 |
0.79 |
0.71 |
0.67 |
| Field of view, real (m/100 m) |
- |
- |
60 |
42 |
28 |
36-20 |
| Field of view, real (ft/1000 yds) |
- |
- |
180 |
120 |
84 |
108-60 |
| Field of view, real (degree) |
- |
- |
3.44 |
2.4 |
1.6 |
2.06-1.14 |
| Field of view, apparent (degree) |
- |
- |
66 |
66 |
66 |
40-65 |
| Shortest focusing distance (m) |
5 |
5 |
- |
- |
- |
- |
| Shortest focusing distance (ft) |
16 |
16 |
- |
- |
- |
- |
| Diopter correction at 8 (dpt) |
5 |
5 |
- |
- |
- |
- |
| Twilight factor (DIN 58388) |
- |
- |
40 |
49 |
60 |
40-69 |
| Objective filter thread |
M 82 x 0.75 |
M 82 x 0.75 |
- |
- |
- |
- |
| Length, approx. (mm) |
355 |
335 |
70 |
73 |
78 |
86 |
| Length, approx. (in) |
14.0 |
13.2 |
2.80 |
2.9 |
3.1 |
3.4 |
| Weight approx. (g) |
1300 /
HD 1350 |
1280 /
HD 1330 |
220 |
250 |
260 |
260 |
| Weight approx. (oz) |
45.9 /
HD 47.6 |
45.2 /
HD 46.9 |
7.8 |
8.8 |
9.2 |
9.2 |
