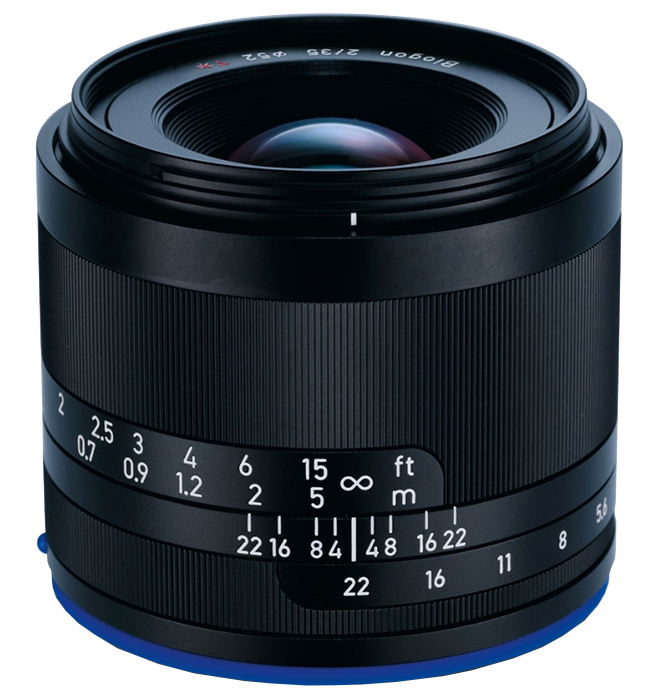

Zeiss Loxia F2.0 35mm E-Mount
The Zeiss Loxia F2.0 35mm E-Mount offers an extended field of view. This makes it the first choice for showing a subject in their environment or establishing connections between people. Like in reportage or street photography, for example. That’s what makes it the most important focal length for the genre in compact 35mm cameras. At the same time, the small size and weight of this camera system allows for a great deal of independence and discretion when it comes to photographing your subjects. And precise, manual focus gives you all the creative possibilities you need to tell the story in your own personal way.
Zeiss Loxia F2.0 35mm E-Mount were specifically designed for Sony α7 cameras. This means that they can make the most of the mirrorless, full frame system, while giving you all the creative possibilities of ‘classic’ photography with manual focus at the same time.
With the Zeiss Loxia F2.0 35mm get an angle of view so wide that it can capture very much of the life around us in a single frame – this is what the name Biogon originally means. A focal length, produced with an almost symmetric lens design of surprising compactness, featuring the typical advantages of symmetrical lens designs: distortion is extremely well controlled, and so is color correction and image field flatness.
One completely new feature of the Loxia lens is that you can ‘declick’ the aperture’s locking mechanism using a tool (supplied) and an adjustment screw on the bayonet surface. This means that for video applications, you can smoothly eliminate any unwanted differences in brightness as you pan the camera. This feature can also be used with other video systems whose size makes them suitable for adaption.
Precise manual focus
With a manually focusing a lens means controlling the image result from your fingertips. A good ergonomic design makes all the difference. ZEISS lenses stand out with their large rotation angle which enables precise focusing. Changes are immediately visible in the viewfinder. The high-quality focusing mechanism moves smoothly without play, thus also supporting the intuitive interaction with the focal plane. The precise engraving in meter and feet, and the depth of focus scale provide additional support for manually focusing.
Virtually distortion-free optics
Dramatic perspectives and a view from extraordinary image angles – ZEISS lenses open up new composition possibilities. Distortion would disrupt the composition because straight lines, whose image does not go through the image center, would be reproduced with a curved shape. This annoying effect is accordingly and largely compensated through elaborate optical designs at all focal lengths.
High-grade full-metal casing
Tangible quality that holds its value is what qualifies ZEISS lenses for decades of hard use. A precision-engineered full-metal casing, grippy focus and aperture rings made of metal, and a tough front bayonet and filter screw guarantee stunning photographic results. A special sealing ring on the bayonet also protects the interface between the camera and the lens.
Full frame compatible
ZEISS lenses are suitable for digital Sony Alpha cameras and have been optimized for film and sensors up to full 35 mm format (24 x 36 mm).
|| 35 mm
||f/2.0 – f/22
||0,30 m (11.81‘‘) - ∞
|Number of elements/groups
||9 / 6
|Angular field, diag./horiz./vert.
||63,02° / 54,06° / 37,57°
|Coverage at close range
||210,2 mm x 139,4 mm (8.28‘‘ x 5.49‘‘)
||M52 x 0.75
|Dimensions (with caps)
||66,0 mm (2,60‘‘)
|Diameter of focusing ring
||62,1 mm (2.44‘‘)
