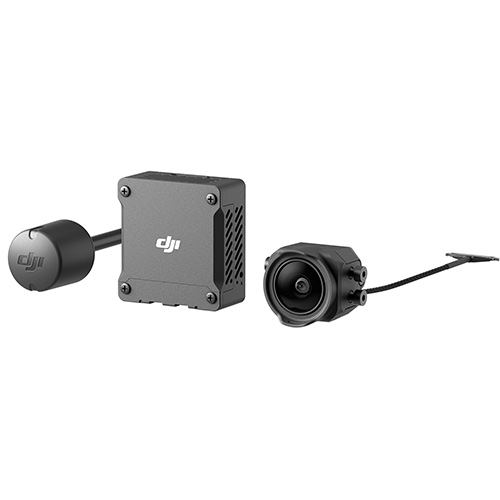

DJI O3 Air Unit
The DJI O3 Air Unit offers cutting-edge video transmission technology in a compact and lightweight body so that you can take your FPV experience to new heights. The unit provides outstanding high-definition video transmission from extended distances with low latency. Other features include a 1/1.7-inch sensor and a 155° super-wide FOV.
THE DJI O3 Air Unit is compatible with the DJI Goggles 2,* DJI FPV Goggles V2* and DJI FPV Remote Controller 2.*
*Sold separately
O3+ Video Transmission
The DJI O3 Air Unit comes equipped with DJI O3+ Video Transmission technology to produce some powerful video transmission capabilities. You can control your drone with snappy responsiveness while receiving a crisp, ultra-sharp live feed. The 2T2R omnidirectional antennas also aid the stability and smoothness of video transmission within the signal coverage range. The O3 lets you enjoy video transmission resolution up to 1080p at a frame rate as high as 100fps as well as supporting H.265 video coding.
10km Transmission Range
You can fly farther with the O3 thanks to an extended 10km transmission range. The unit also automatically selects the frequency band so that it uses the optimal signal, while delivering excellent anti-interference performance.*
*2.4 GHz and 5.8 GHz frequency bands are supported for receiving; however, for transmitting, only the 5.8 GHz frequency band is supported. Some countries or regions do not support 5.8 GHz. Please check, confirm, and strictly abide by local laws and regulations before use.
1/1.7-inch Sensor
The O3 features 20GB of built-in storage along with a 1/1.7-inch camera sensor, with a 12.7mm equivalent focal length and f/2.8 aperture to be able to produce richer details and high-quality imagery. You can capture stunning 4K footage at up to 60fps* with a 155° super-wide FOV allowing you to create stunning visual effects. You can also enable D-Cinelike colour mode to give you even greater freedom and control during the post-production process.
*4K/60fps videos do not support the aspect ratio of 4:3 and only support that of 16:9.
Enhance Your Creativity
You can use the O3 Air unit camera module with the DJI Avata ND Filters Set (ND8/16/32)* to further enhance your creativity.
*Sold separately
Customise Your Experience
The O3 supports Canvas mode. This allows you to customise the on-screen display information of your DJI Goggles 2* or DJI FPV Goggles V2.*
*Sold separately
Key Features
- 1/1.7-inch Sensor
- 30ms, 10km DJI O3+ Video Transmission
- 1080p/100fps H.265 Video Transmission
- 4K/60fps Video
- D-Cinelike colour mode
- 155° Super-Wide FOV
- Frequency Auto-Switching
- Canvas mode
- 50 Mbps Max Video Transmission Bitrate
Click here for full product specifications >

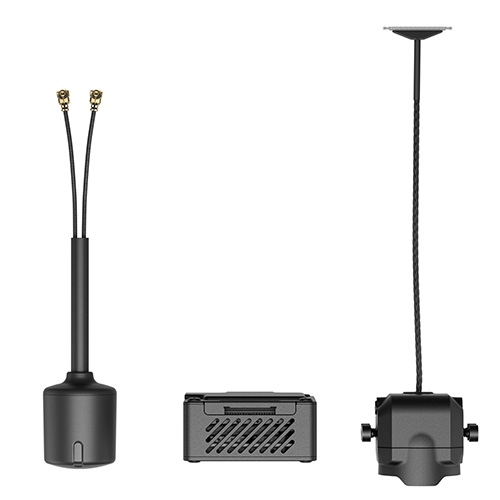

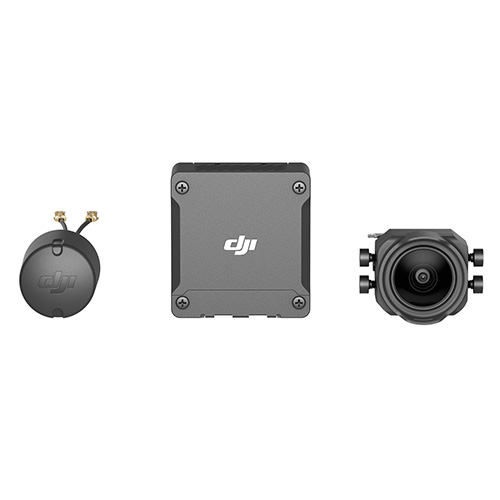

What’s in the box?
- 1 x DJI O3 Air Unit Camera Module

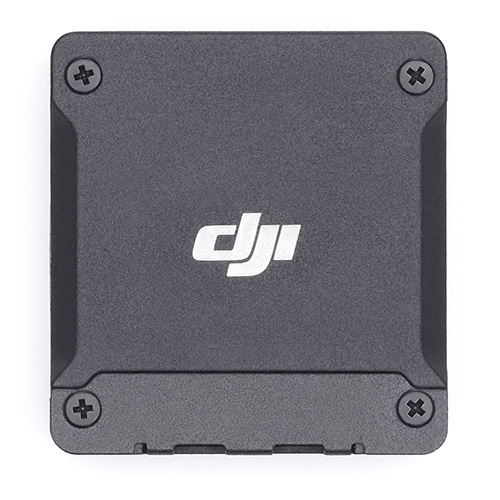

- 1 x DJI O3 Air Unit Transmission Module

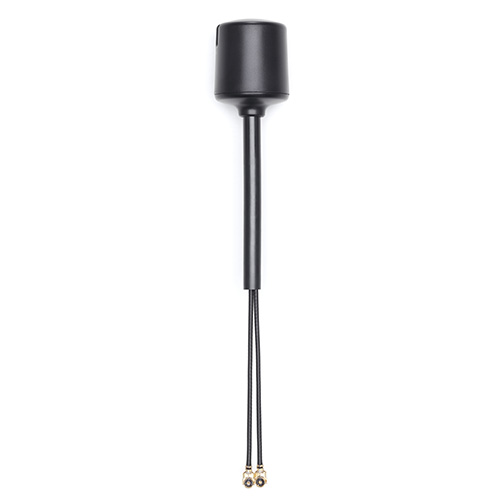

- 1 x DJI O3 Air Unit Antenna
- 1 x DJI O3 Air Unit 3-in-1 Cable
FAQ
Which products are compatible with the DJI O3 Air Unit?
THE DJI O3 Air Unit is compatible with the DJI Goggles 2,* DJI FPV Goggles V2* and DJI FPV Remote Controller 2.*. Explore DJI O3 Air Unit and DJI Goggles 2 range here>
*Sold separately
What are the specs of the O3 camera module?
The O3 features 20GB of built-in storage along with a 1/1.7-inch camera sensor, with a 12.7mm equivalent focal length and f/2.8 aperture to be able to produce richer details and high-quality imagery. You can capture stunning 4K footage at up to 60fps* with a 155° super-wide FOV allowing you to create stunning visual effects. You can also enable D-Cinelike colour mode to give you even greater freedom and control during the post-production process.
*4K/60fps videos do not support the aspect ratio of 4:3 and only support that of 16:9.
