DJI X-Port for Payloads

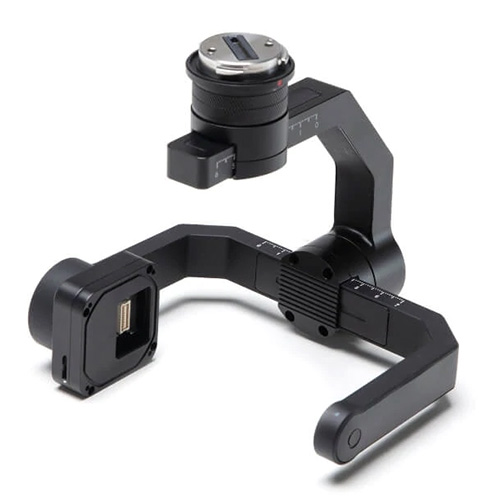

The DJI X-Port is a high-precision 3-axis gimbal designed for drone hardware developers who wish to create their own custom sensors for use with the DJI Matrice 300 RTK and Matrice 200 Series V2 drones. The X-Port features a built-in communication API, DJI SkyPort V2 integration, and a gimbal debugging interface.
Control Parameter Settings
The DJI X-Port gimbal allows developers and manufacturers to create payloads based on DJI's gimbal technology, with access to its resources including power systems, communications links, and aircraft status parameters such as GPS data, flight altitude data, and app date and time.
DJI also provides a suite of software products to support developers in using the X-Port gimbal, such as Onboard SDK, Mobile SDK, DJI Pilot app, and DJI Assistant 2 desktop application.
The X-Port gimbal connects the load via the Payload SDK (PSDK) port for both power supply and communication.
Various parameters can be set, including the gimbal pitch, roll and yaw,.
These control parameter settings and user parameter settings can be done with DJI Assistant 2 For Matrice or the DJI Pilot App.
In the development stage, you need to use Payload SDK Development Kit 2.0 with X-Port together.
Working with the Payload SDK Development Kit 2.0, X-Port is estimated to reduce start-to-finish development time for new payloads by up to 40 per cent.
Payload Requirements
The requirements of the payload mounted on the X-Port are as follows:
- The width of the pitch on the X-Port is 80mm. The width of the payload must not exceed the wheelbase.
- The maximum payload weight is 450g, otherwise, it may damage the gimbal or the pressure-reducing ball.
-
Ensure that a load positioned to the front of the pitch axis centreline will not be blocked by the yaw arm when the load tilts up to 45°.
- Use the Long Landing Gear if the payload touches the ground.
- Be sure that the port of the payload is completely flat and ensure that the waterproof seal can be closed completely.
-
Ensure that there is enough connection stiffness between the payload components. It is recommended to use an aluminium alloy shell, avoiding 3D-printed or carbon-fibre shells.
Key Features
- High-precision 3-axis gimbal
- Integrates all functions of PSDK 2.0
- Customisable gimbal parameters
- Supports Mounting in the Upward-facing Gimbal Slot
- Customisable channels for remote controller buttons
- Can be controlled directly through the DJI Pilot app, MSDK and OSDK
Click here for full product specifications >
What's in the box?
- DJI X-Port x 1
- Protective Cover x 1
- Primary Arm Mounting Screw x 5
- Secondary Arm Mounting Screw x 1
- Secondary Arm Sleeve x 1
- Secondary Arm Plug x 1
FAQ
How can I get the X-Port development kit?
X-Port forms part of the Payload Software Development Kit (PSDK). To register, click the link here and then download the development package after undergoing the DJI audit process.
What is PSDK?
The DJI Payload SDK (PSDK) is a transformational SDK that enables third-party manufacturers to develop application-specific payloads that can be integrated seamlessly with DJI flight platforms.
