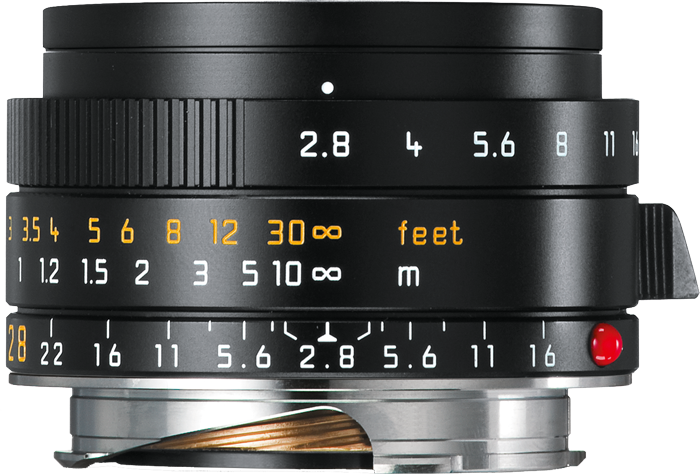

Leica 28mm f2.8 Elmarit-M ASPH - 2016 Model

The Elmarit-M 28 mm f/2.8 ASPH. is the most compact lens in the entire portfolio of Leica M-Lenses.

Our Price

Usually available in 5-7 days

MPN Code

EAN Code


Save even more by creating your own bundle!
Browse the categories below to reveal specially reduced items to go with this product, then click and add them to create your own unique bundle with discounted price.

Barclays Finance

Easily spread the payments with our range of finance solutions.

Choose the finance package that suits you best.

Apply from our checkout
Easy online application
Instant Decision
We process your order

Simply choose your repayment period and choice of initial deposit. Look out for the promotional Interest Free offers.

Price of Goods: £1,900.00

Total amount repayable . APR representative. Annual Rate of Interest Fixed.

Finance is subject to status. Terms and conditions apply.

Leica 28mm f2.8 Elmarit-M ASPH - 2016 Model

The new classic prime lens for street photography!

  • A brilliant lens

    The Elmarit-M 28 mm f/2.8 ASPH. is the most compact lens in the entire portfolio of Leica M-Lenses. This is made possible by the use of an aspherical lens element, which enables particularly compact lens construction and a weight of only 180 grams. This makes the Elmarit-M a firm favourite with street and reportage photographers. Every scene can be composed to perfection thanks to a rectangular, full-metal lens hood with a screw mount that can be replaced by a screw-in protector ring when not in use.

  • Technical details

    This lens is optimised for digital photography and has significantly reduced image field curvature in comparison to the previous model. This results in considerably improved image performance with high resolution and extremely impressive reproduction of details. The Elmarit-M 28 mm f/2.8 ASPH.is practically distortion-free from infinity to its closest focusing distance of 0.7 metres, and provides an exeptionally clear view through the viewfinder of M cameras.

Technical Information

  • Angle view (diagonal, horizontal, vertical):
    • For 35 mm (24 x 36 mm): 75°/65°/46°;
    • for M8 (18 x 27 mm): 60°/51°/36°, corresponds to a focal length of approx. 37 mm in 35 mm format
  • Optical design:
    • Number of elements/groups: 8/6
    • Entrance pupil for bayonet: 11.8 mm
    • Focusing range: 0.7 m to infinity
  • Distance setting:
    • Scale: combined metre-/feet-increments
  • Smallest object field:
    • Smallest object field: for 35 mm: 533 x 800 mm, for M8: 400 x 600 mm
    • Highest reproduction ratio: 1:22.2
  • Diaphragm:
    • Setting/type: preset, with click-stops, half values available
    • Smallest aperture: f/22
    • Number of aperture blades: 10
  • Bayonet:
    • Leica M quick-change bayonet
  • Filter thread:
    • E39
  • Lens hood:
    • Available, screwable (supplied)
  • Dimensions and weight:
    • Length: approx. 30.7/49.4 mm (without/with lens hood) Largest diameter without lens hood: approx. 52 mm Weight: approx. 175 g/211 g (without/with lens hood and covers)
