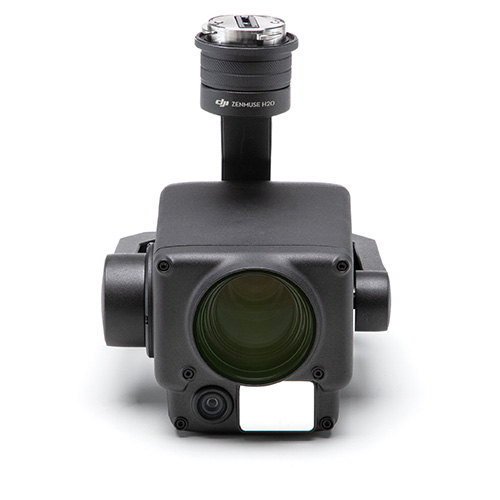

DJI Zenmuse H20
The Zenmuse H20 is a multi-sensor payload designed for a wide range of aerial imaging capabilities. The H20 features a 20MP Zoom camera, a 12MP Wide camera and an integrated laser rangefinder (LRF) that can measure the distance to an object up to 1200m away. The H20 works with the DJI Matrice 300 RTK Drone*, has an IP44 rating and can be operated in temperatures ranging from -20°C and 50°C.
There is also a Quad-Sensor version called the H20T* available that comes equipped with a Radiometric Thermal Camera.
*Sold separately
What is the DJI Zenmuse H20 used for?
The DJI Zenmuse H20 has many uses including;
Firefighting - Fight fires and save lives without endangering personnel
Search & Rescue - Act quickly to locate missing people and better plan rescue missions
Law Enforcement - Quickly assess a situation and plan accordingly while improving officer and bystander safety
Powerline Inspection - Easily visualise extensive power line networks in remote areas
Oil & Gas - Conduct inspections of pipelines, well sites, and more while keeping workers away from risky areas
Triple-Sensor Solution
The H20 allows you to capture everything whether it be up close or at a distance thanks to the following fantastic features;
- Powerful Zoom Camera - This camera comes equipped with a 20MP, 1/1.7” CMOS Sensor and can capture up to 4K/30fps video as well as offering a 23× Hybrid Optical Zoom with a 200× Max Zoom.
- Wide Camera - This wide-angle camera boasts a 12MP, 1/2.3” CMOS sensor with a 24mm (35mm equivalent) focal length and a DFOV of 82.9° so that you can get everything in view.
- Laser Rangefinder - This integrated laser rangefinder (LRF) can measure the distance to an object ranging from 3m to 1200m away with an accuracy of ± (0.2 m + D×0.15%)
Seamless User Interface
The H20 features an easy-to-use interface that lets you quickly switch between wide, zoom, and thermal camera views*, and preview the zoom FOV while in wide or thermal* camera view.
*H20T version only
Intelligent Ways to Collect Data
The H20 allows you to collect data in the following ways;
AI Spot-Check - Automate routine inspections and capture consistent results every time. Onboard AI recognizes the pre-marked subject of interest in subsequent automated missions to ensure consistent framing.
High-Res Grid Photo - Frame an area of interest in wide camera view, and the zoom camera will automatically capture a set of 20 MP images of the area. These images are stored together with an overview image that can be viewed in greater detail.
PinPoint - A quick tap marks an object in view, and advanced sensor fusion algorithms immediately deliver its coordinates.
Smart Track - Identify and follow moving subjects like people, vehicles, and boats with the auto-zoom function, while continuously acquiring the subject’s dynamic location.
Key Features
- 12 MP Wide Camera
- 82.9° DFOV
- 20 MP Zoom Camera
- 23× Hybrid Optical Zoom
- Laser RangeFinder (1200m Max Range)
- IP44 Rating
- -20°C to 50°C Operating Temperature
- Active Image Stabilisation and EIS
- Night Scene Mode
Click here for full product specifications >
FAQ
What are the differences in the H20 models?
There are 3 versions of the Zenmuse H20 available: the Zenmuse H20 (Triple-sensor model with a wide-angle camera, a zoom camera, and a laser rangefinder) the Zenmuse H20T (quad-sensor model with a wide-angle camera, a zoom camera, a laser rangefinder, and a radiometric thermal camera) and the Zenmuse H20N (quad-sensor model with a wide-angle camera, a zoom camera (both with starlight sensors), a laser rangefinder, and a radiometric thermal camera).
