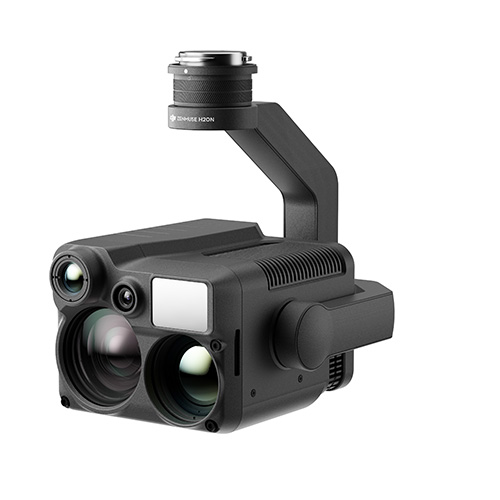

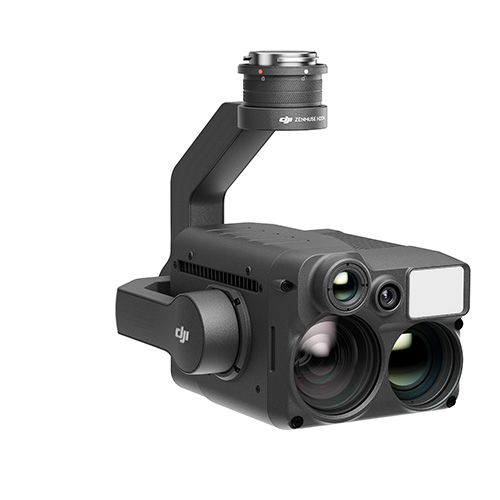

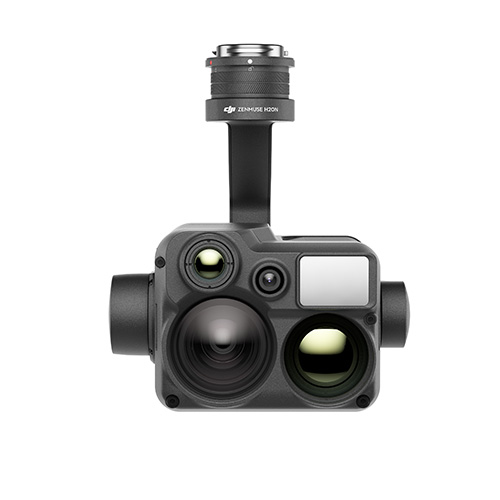

DJI Zenmuse H20N
The Zenmuse H20N is a multi-sensor payload designed for a wide range of aerial imaging capabilities. The H20N features a hybrid sensor with a 20x hybrid optical zoom and wide-angle camera. Both of these are equipped with starlight sensors making them perfect for low-light situations along with 640 x 512 resolution dual zoom thermal cameras with 2x\8x optical zoom, as well as an integrated laser rangefinder (LRF) that can measure the distance to an object up to 1200m away.
The H20N works with the DJI Matrice 300 RTK Drone*, has an IP44 rating and can be operated in temperatures ranging from -20°C and 50°C.
*Sold separately
What is the DJI Zenmuse H20N used for?
The DJI Zenmuse H20N has many uses including;
Firefighting - Fight fires and save lives without endangering personnel
Search & Rescue - Act quickly to locate missing people and better plan rescue missions
Law Enforcement - Quickly assess a situation and plan accordingly while improving officer and bystander safety
Powerline Inspection - Easily visualise extensive power line networks in remote areas
Oil & Gas - Conduct inspections of pipelines, well sites, and more while keeping workers away from risky areas
Multi-Sensor Solution
The H20N allows you to capture everything whether it be up close or at a distance thanks to the following fantastic features;
Night Vision Zoom Camera - This camera comes equipped with a 4MP, 1/1.8" CMOS Sensor with low illumination to 0.0001 Lux and can capture up to 4K/30fps video as well as offering a 20× Optical Zoom with a 128× Max Zoom.
Night Vision Wide Camera - This wide-angle camera boasts a 2MP, 1/2.7" CMOS sensor with low illumination to 0.0001 Lux with a 4.5mm (29mm equivalent) focal length and a DFOV of 73.6° so that you can get everything in view.
Laser Rangefinder - This integrated laser rangefinder (LRF) can measure the distance to an object ranging from 3m to 1200m away with an accuracy of ± (0.2 m + D×0.15%)
Dual Thermal Cameras - These thermal cameras have a sensitivity ranging of ≤ 50mk@f1.0 (NEDT), a DFOV of 40.6° and a maximum resolution of 640×512 at 30fps.
Seamless User Interface
The H20N features an easy-to-use interface that lets you quickly switch between wide, zoom, and thermal camera views, and preview the zoom FOV while in the wide or thermal camera view.
Intelligent Ways to Collect Data
The H20N allows you to collect data in the following ways;
AI Spot-Check - Automate routine inspections and capture consistent results every time. Onboard AI recognizes the pre-marked subject of interest in subsequent automated missions to ensure consistent framing.
High-Res Grid Photo - Frame an area of interest in a wide camera view, and the zoom camera will automatically capture a set of 20 MP images of the area. These images are stored together with an overview image that can be viewed in greater detail.
PinPoint - A quick tap marks an object in view, and advanced sensor fusion algorithms immediately deliver its coordinates.
Smart Track - Identify and follow moving subjects like people, vehicles, and boats with the auto-zoom function, while continuously acquiring the subject’s dynamic location.
Dual Thermal Cameras
The H20N comes equipped with Dual Radiometric Thermal Cameras that allow you to monitor the temperature of a site or an asset. This enables you to eliminate any risks by acquiring a precise temperature reading from the air. You can get a real-time reading of the surface temperature easily by simply tapping a point on the display as well as selecting an area to view the lowest, highest, and average temperatures.
Other Features
The Zenmuse H20N comes equipped with a host of intelligent features including;
Temp Alarm - Receive instant notifications in DJI Pilot when object temperatures exceed your preset alert values.
Isotherms - Visualise a specific band of temperatures to find what is important.
Colour Palettes - Adjust the colours applied to the thermal data based on the needs of specific scenarios.
Gain Modes - Adjust gain modes to change the temperature range captured: High Gain Mode covers a smaller temperature range but is more sensitive to temperature differences; Low Gain Mode covers a wider temperature range.
R-JPEG Images - Images captured by the Zenmuse H20T are in the R-JPEG format with embedded temperature information. By importing these images into DJI Thermal Analysis Tool, you can measure temperature, and adjust parameters such as Emissivity, and Reflected Temp.
Key Features
- 2MP Night Vision Wide Camera
- 73.6° DFOV
- 4MP Night Vision Zoom Camera
- 20× Hybrid Optical Zoom
- Laser RangeFinder (1200m Max Range)
- Dual Thermal Cameras
- IP44 Rating
- -20°C to 50°C Operating Temperature
- Active Image Stabilisation and EIS
- Night Scene Mode
Click here for full product specifications >
FAQ
What are the differences in the H20 models?
There are 3 versions of the Zenmuse H20 available: the Zenmuse H20 (Triple-sensor model with a wide-angle camera, a zoom camera, and a laser rangefinder) the Zenmuse H20T (quad-sensor model with a wide-angle camera, a zoom camera, a laser rangefinder, and a radiometric thermal camera) and the Zenmuse H20N (quad-sensor model with a wide-angle camera, a zoom camera (both with starlight sensors), a laser rangefinder, and a radiometric thermal camera).
