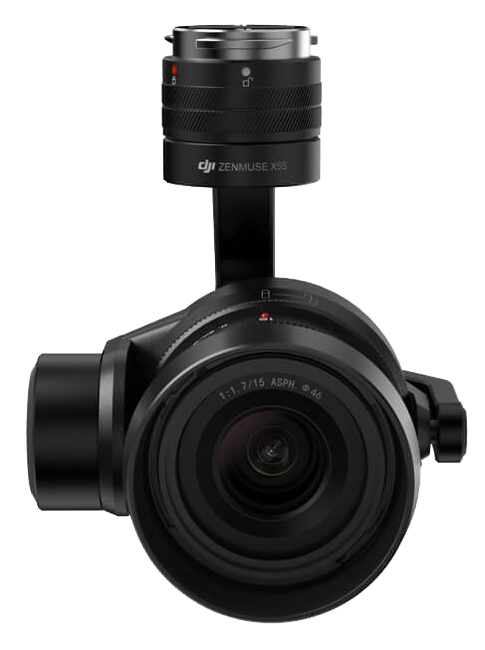

DJI Zenmuse X5S Camera

DJI Zenmuse X5S Camera

Equipped with an uprated Micro 4/3 sensor, the Zenmuse X5S has a dynamic range of 12.8 stops with a much improved signal to noise ratio and color sensitivity than the X5R. It supports up to eight standard M4/3 lenses (including zoom lenses) with focal lengths ranging from 9mm-45mm (equivalent to 18mm-90mm on a 35mm camera)

AWAITING STOCK
Orders Accepted
Usually available in 5-7 days
Our Price
£1,945.00

Bundled Items

Total Price £1,945.00
£1,945.00
or
MPN Code 139161
EAN Code 6958265139161
SKU 18160

DJI Zenmuse X5S Camera

Equipped with an uprated Micro 4/3 sensor, the Zenmuse X5S has a dynamic range of 12.8 stops with a much improved signal to noise ratio and color sensitivity than the X5R. It supports up to eight standard M4/3 lenses (including zoom lenses) with focal lengths ranging from 9mm-45mm (equivalent to 18mm-90mm on a 35mm camera), allowing more creative flexibility. The new CineCore 2.0 image processing system on the Inspire 2 makes the Zenmuse X5S capable of capturing 5.2K 30fps CinemaDNG video and Apple ProRes video as well as 4K 60fps using H.264 and 4K 30fpsusing H.265 (both at 100Mbps). Continuous DNG burst shooting at 20fps with 20.8MP images is also supported. The Zenmuse X5S was designed to keep pace with the rigors of high-end professional aerial imaging.



  • Inspire 2 Aerial Imaging

    Compared with the Inspire 1, the Inspire 2 utilizes an innovative structure that separates the CineCore 2.0 image processing system from the camera and places it inside the aircraft. This means that the sensor and optical system are detachable and easily connected using a newly designed quick-release connector. Designing the camera system in this way effectively protects the sensor from magnetic interference originating from the processor. It also allows a range of lightweight camera units to be connected as required by different scenes. The uprated M4/3 sensor — and support for interchangeable lenses — allows the Zenmuse X5S to capture high resolution images of incredibly high quality, when combined with the extraordinary CineCore 2.0 image processing system.

  • Dynamic Range
  • SNR 18%
  • Colour Sensitivity

Improved Mirco 4/3 Sensor

The onboard Micro 4/3 sensor has been upgraded, significantly improving image quality. With a pixel size of 3.4μm, this 20.8-megapixel sensor captures more detail than the previous sensor. It has 12.8 stops of dynamic range as well as a better signal to noise ratio and color sensitivity than the X5R, allowing it to create clear, low noise images in low light environments.


Array of Compatible Lenses

Since it uses a standard Micro 4/3 mount, the Zenmuse X5S now supports up to eight professional lenses* with focal lengths ranging from 9mm-45mm (equivalent to 18mm-90mm on a 35mm camera), providing more creative control over the final look of a shot.

  • Olympus M.Zuiko 12mm/2.0
  • DJI MFT 15mm/1.7 ASPH
  • Olympus M.Zuiko 17mm/1.8
  • Panasonic Lumix 15mm/1.7
  • Olympus M.Zuiko 25mm/1.8
  • Panasonic Lumix 14-42mm/3.5-5.6 HD
  • Olympus M.Zuiko 45mm/1.8
  • Olympus M.Zuiko 9-18mm/4.0-5.6

*A balancing ring is needed for some lenses. More compatible lenses will be available.


Hollywood-Grade Video

Using CineCore 2.0, the Zenmuse X5S records video at a maximum resolution of 5.2K/30fps in CinemaDNG 12bit1, 5.2K 30fps Apple ProRes 422 HQ and 4K 30fps Apple ProRes 4444 XQ (no alpha)2. Additional recording options include video in 4K/60fps using H.264 or oversampling video in 4K/30fps using H.264/H.265, both with a bitrate of 100Mbps.

1,2-Additional licenses required


  • Lossless In-Video Single and Burst Photo Capture

    Using only the Micro SD card, 20.8MP stills can be captured at 14fps in Burst Mode in JPEG+DNG. Using the DJI CINESSD opens up 20fps continuous DNG Burst Mode with a maximum image resolution of 20.8 megapixels. Stills can also be taken during video recording without interruption.


  • Enhanced Camera Stabilisation

    Stabilizing the Zenmuse X5S is a highly optimized 3-axis gimbal with pinpoint-precise motor rotation with a control accuracy of ±0.01° powered by a dedicated processor. Rather than rely on electrical slip rings — as is common with many gimbals — the Zenmuse X5S uses a unique mechanically limited design and concealed wires to ensure more stable data transmission and greater durability. Vibration is eliminated using three damping balls and a lightweight damping board, creating seamlessly smooth video. 360° rotation remains possible through gimbal rotation and smooth aircraft yaw. Stable, smooth footage1 can be captured even when using a 90mm2 lens.

    1 Equivalent to 35mm camera’s standard focal length

    2 Exposure time must be equal to or longer than 1/60 in GPS mode

Find out more

Read our full guide on Drone Photography here.

Check out our blog on 10 things to consider when buying a drone.

Check out our blog on Flying FPV Drones in the UK


Do I need to register my drone?

Yes, you will need to register this drone. Any drone exceeding 250g will need to be registered. If you require more information for this then please visit the CAA’s DMARES website. If you have already registered and have an Operator ID, ensure this is attached to your drone.

Where can I fly in the UK?

If you have not taken a drone training course you will have to adhere to the rules of the Open Category’s A3 subcategory (fly far from people).

  • No uninvolved people present within the area of flight;
  • No flight within 150m horizontally of residential, commercial, industrial, and recreational areas.

If you would like more freedom with your flying it is best to take a drone training course.

Training options

  • A2 CofC
  • An A2 CofC allows operations in the A2 subcategory (fly near to people) of the Open Category. This permits flights up to 50m horizontally from uninvolved people. This is allowed during the Transitional Period, which runs in the UK until December 31, 2022.
  • GVC
  • For operations which pose a greater risk than the Open Category or fall outside the Open Category perimetres, a GVC is required to apply for an Operational Authorisation to fly in the Specific Category.

Can I use this drone commerically?

Yes. Having an A2 CofC allows you to operate commercially. But the A2 CofC is not specifically a commercial permission; it is a competency which permits flights in the A2 subcategory, regardless of recreational or commercial flying.

You can fly commercially in the Open Category without an A2 CofC, but your operations will be restricted to the conditions of the A3 subcategory.

The GVC allows you to apply for an Operational Authorisation, which has replaced the Permission for Commercial Operation (PfCO), to fly in the Specific Category - geared towards enterprise drone pilots and for operations outside the remit of the Open Category.


Specifications

GENERAL

Name Zenmuse X5S
Dimensions 140×98×132 mm
Weight 461 g



CAMERA

Supported Lens DJI MFT 15mm/1.7 ASPH (With Balancing Ring and Lens Hood)
Panasonic Lumix 15mm/1.7 (With Balancing Ring and Lens Hood)
Panasonic Lumix 14-42mm/3.5-5.6 HD
Olympus M.Zuiko 12mm/2.0 (With Balancing Ring)
Olympus M.Zuiko 17mm/1.8 (With Balancing Ring)
Olympus M.Zuiko 25mm/1.8
Olympus M.Zuiko 45mm/1.8
Olympus M.Zuiko 9-18mm/4.0-5.6
Sensor CMOS, 4/3”
Effective Pixels: 20.8MP
FOV 72° (with DJI MFT 15mm/1.7 ASPH )
Photo Resolutions 4:3, 5280×3956
16:9, 5280×2970
Video Resolutions CinemaDNG
5.2K: 5280×2970
23.976/24/25/29.97p,12-bit,up to 4.2Gbps
5.2K: 5280×2160
23.976/24/25/29.97p,12-bit
4K: 4096×2160,3840×2160
23.976/24/25/29.97/47.95p,12-bit,up to 3.6Gbps
4K: 4096×2160,3840×2160
50/59.94p,10-bit

ProRes
5.2K: 5280×2160
23.976/24/25/29.97p,10-bit,422HQ@1.8Gbps
4K: 3840×2160
23.976/24/25/29.97p,10-bit,422HQ@1.3Gbps
4K: 3840×2160
23.976/24/25/29.97p,10-bit,444HQ@2.1Gbps

H.264
C4K:4096×2160
23.976/24/25/29.97/47.95/50/59.94p @100Mbps
4K: 3840×2160
23.976/24/25/29.97/47.95/50/59.94p @100Mbps
2.7K: 2720×1530
23.976/24/25/29.97p @80Mbps 47.95/50/59.94p @100Mbps
FHD: 1920×1080
23.976/24/25/29.97p @60Mbps 47.95/50/59.94p @80Mbps 119.88p @100Mbps

H.265
C4K: 4096×2160
23.976/24/25/29.97p @100Mbps
4K: 3840×2160
23.976/24/25/29.97p @100Mbps
2.7K: 2720×1530
23.976/24/25/29.97p @65Mbps 47.95/50/59.94p @80Mbps
FHD: 1920×1080
23.976/24/25/29.97p @50Mbps 47.95/50/59.94p @65Mbps 119.88p @100Mbps
Photo Formats DNG,JPEG,DNG+JEPG
Video Formats RAW,ProRes,MOV,MP4
Operation Modes Capture, Record, Playback
Still Photography Modes Micro SD: Single shot, Burst Shooting:
3/5/7/10/14 frames, Auto Exposure Bracketing, 3/5 bracketed frames at 0.7EV bias, Timelapse
SSD: RAW Burst Shooting:
3/5/7/10/14/20/∞ frames
Exposure Mode Auto, Manual, Shutter, Aperture
Exposure Compensation ±3.0 (1/3 increments)
Metering Mode Center-weighted metering,
Spot metering (area option 12x8)
AE Lock Supported
Electronic Shutter Speed 8-1/8000s
White Balance Auto, Sunny, Cloudy, Incandescent,
Neon Custom (2000K–10000K)
ISO Range 100 – 6400 (Video)
100 – 25600 (Stills)
Video Captions Supported
Anti-Flicker Auto, 50Hz, 60Hz
PAL/NTSC Supported



GIMBAL

Angular Vibration Range ±0.01°
Mount Detachable
Controllable Range Tilt: +30°to -90°, Pan: ±320°
Mechanical Range Tilt: +50°to -140°, Pan: ±330°, Roll: +90° to +30°
Max Controllable Speed Tilt: 90°/s, Pan: 90°/s



ENVIRONMENTAL

Operating Temperature 14°–104°F (-10 to 40℃)
Storage Temperature -4°–140°F (-20 to 60℃)
